Automatic Boom Barrier with 140W BLDC Gear Motor 0.3~5S Operation Time and 2 Years Warranty

Model Number : 18B

Brand Name : CBG

Place of Origin : Guangdong, China

MOQ : 2

Price : $135-155

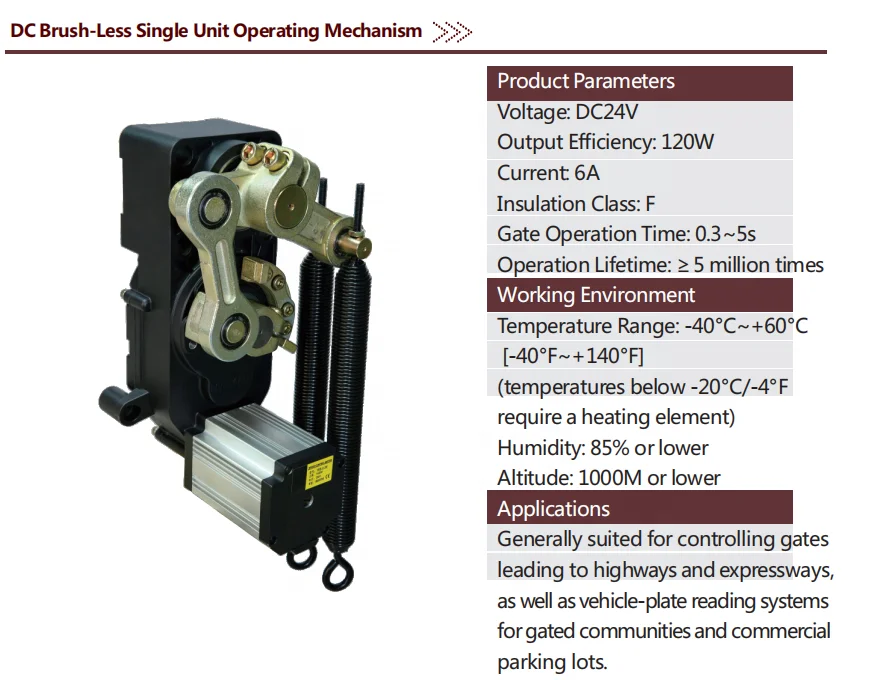

Operation Time : 0.3~5S

Voltage : DC24V

Insulation Class : F

Operation Lifetime : >=5 Million times

Output Power : 140W

Altitude : 1000M or lower

Temperature Range : -40°C~+60°C

Net Weight : 16kg

Package Size : 38.5X20.8X25CM

Protection Degree : ≥IP55

Gear Accuracy : ≥ GB / T100951, 2-2001 7 level

Motor Type : DC brushless motor

Speed Adjustment : Adjustable

Seal Structure : Entire seal

Voltage Safety : DC24V(Safe voltage)

Contact Now

Company Profile

Shenzhen Chengbang Mechanical and Electrical Industry Co., Ltd. was established in 2010, located in Guangdong China. The factory with 50,000 square meter areas and more than 50 experienced employees which supply ability is 2000pcs per month. We are the professional manufacturer for vehicle entrance management system and equipment (Swinging door operating mechanism, Brush-less gate motor, DC brush-less single unit operating mechanism, Commercial gate operating mechanism and so on). We have strong scientific technology, first-class produced lines, advanced gear testing centers and high-precision advanced equipment, imported CNC gears which are ahead of our peers in terms of quality. In pursuit of high quality products, excellent reputation, continuous innovation and development and perfect after-care service, we d launched a series of diversified products.

Automatic Boom Barrier with 140W BLDC Gear Motor 0.3~5S Operation Time and 2 Years Warranty

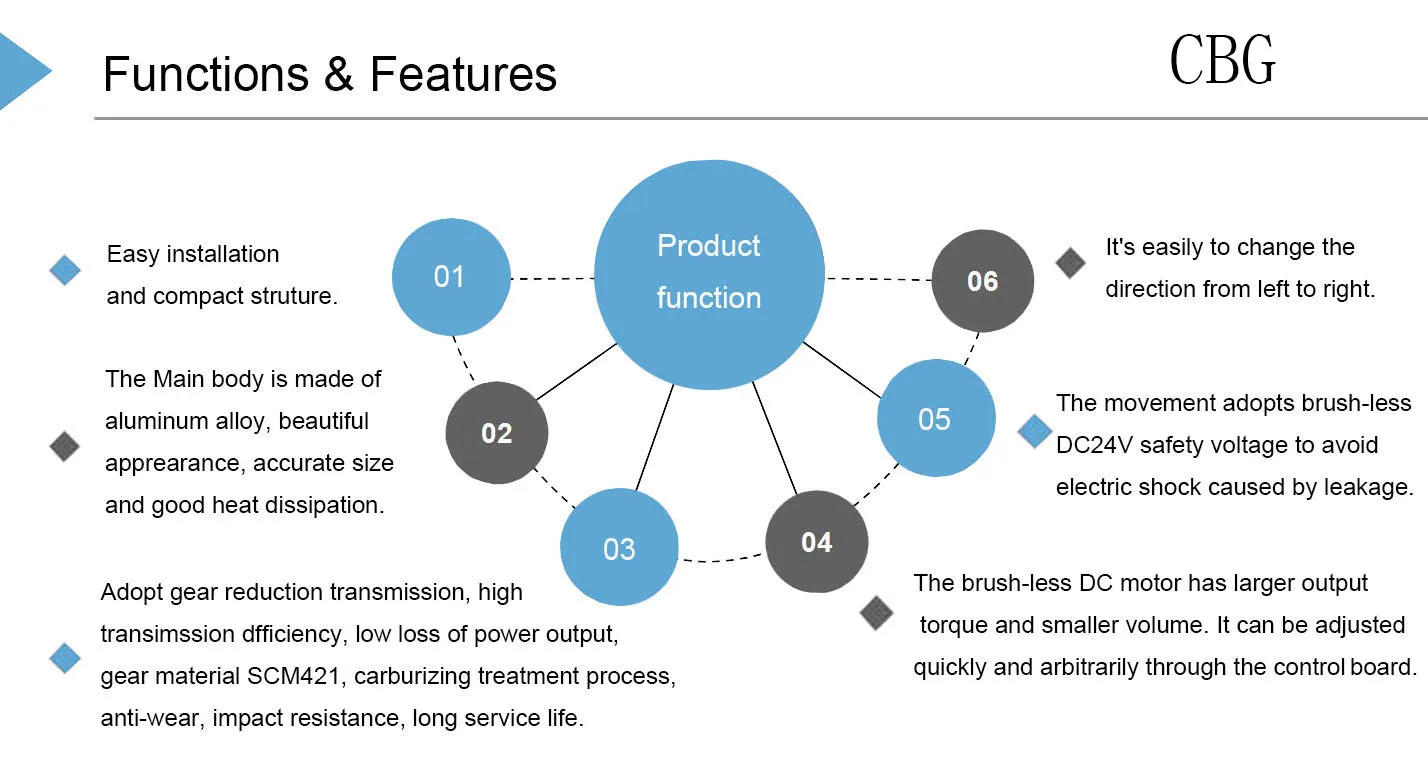

Products Description

Single net weight: 16kg

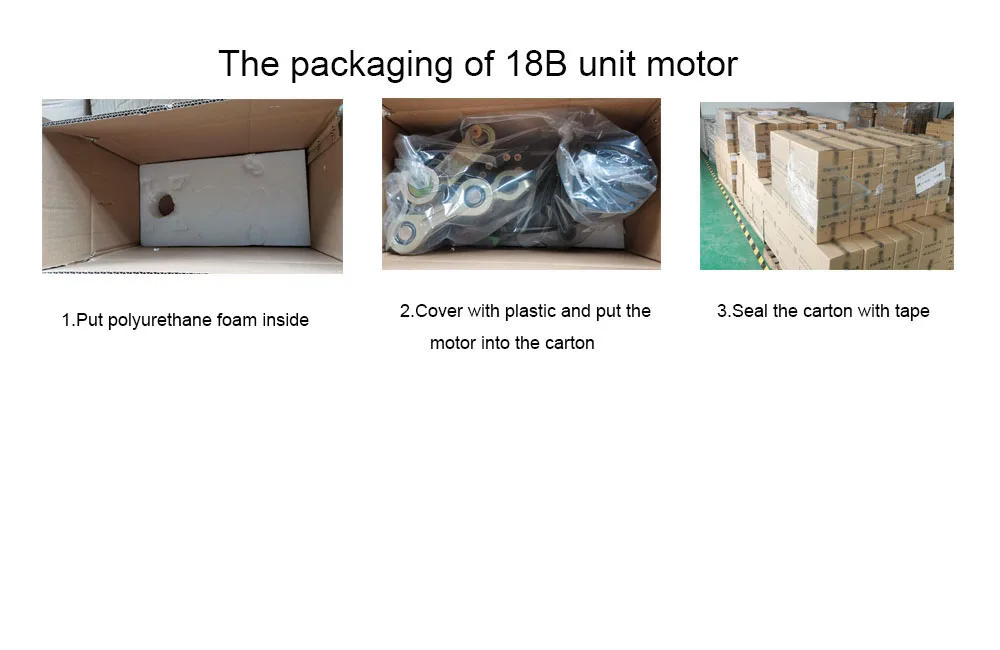

Single package carton size: 38.5X20.8X25CM Package Type: Carton or Wooden case

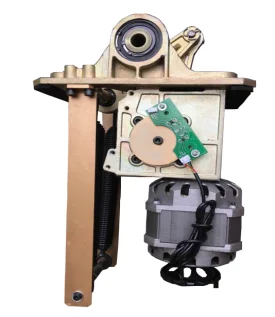

Old and New Product's Difference

Before:

1) Worm gear, general appearance

2) The previous products use with Rv50 reducer and added the splint to compose the movement. The worm gear is a consumable product. After using a long time, there will be a large gap, the pole will be not stable and shake so will cause the gear reducer to grind.

3)The products mainly used with AC 220V motor, the fixed speed was not adjustable.

4) Open structure, a low degree of protection, easy to enter water.

5) AC220V.

6) During installation, needs to adjusted the magnet position to ensure the door opening angle. After a long time, the shaking will affect the limit position or the pole may be deviated downwards.

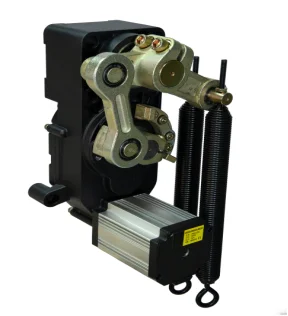

After:

1) Gear transmission structure, beautiful appearance, compact structure, strong overall sense.

2) The new products are tailor-made for this industry and the gear adopts the processing technology of worm grinding wheel grinding after heat treatment, fine rolling of hard alloy hob, etc., the accuracy grade ≥ GB / T100951, 2-2001 7 level.

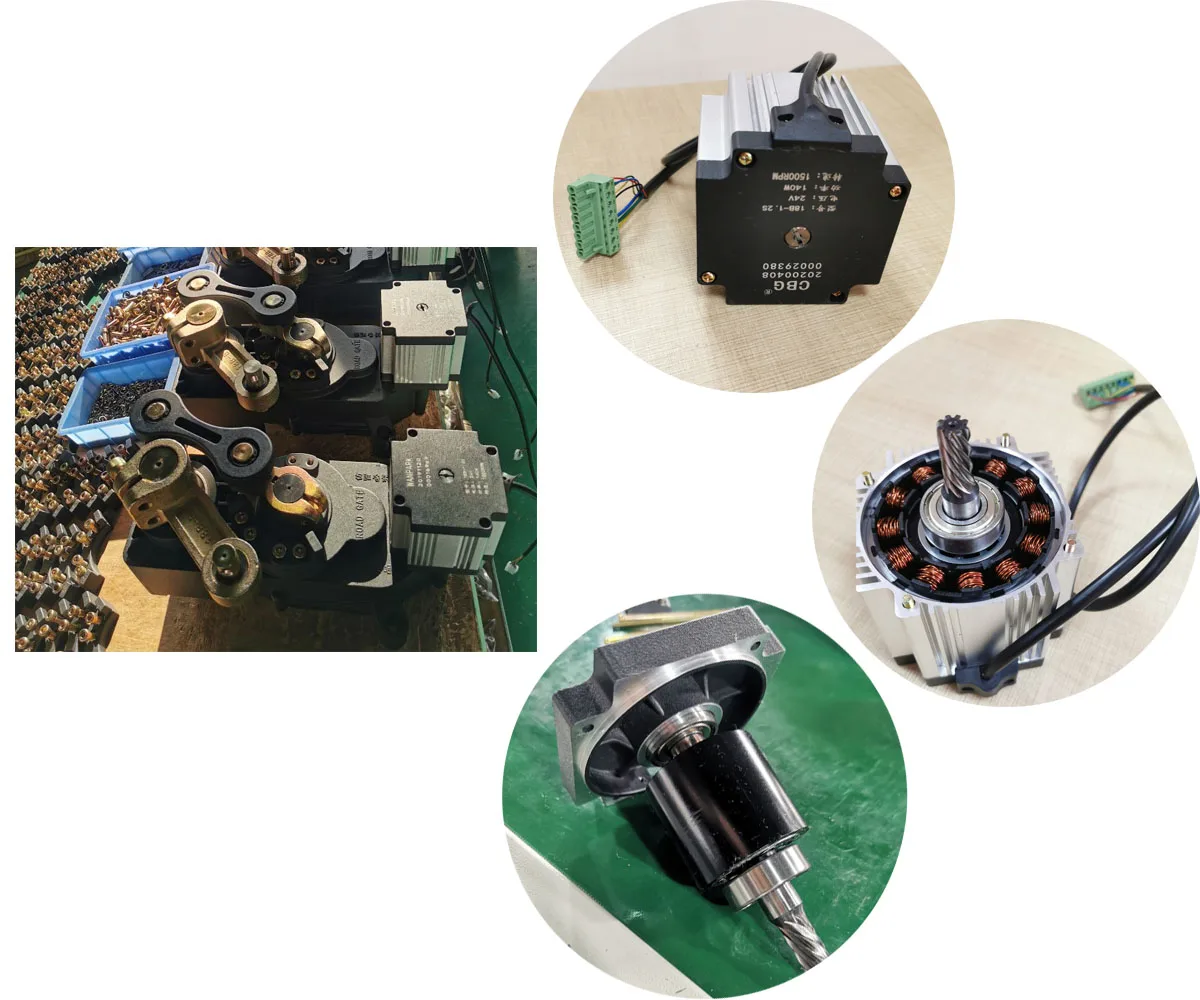

3)The new product uses with DC brushless motor to avoid the problem of carbon brush life. Adjustable speed.

4)The entire seal structure, high degree of protection (≥IP55); have a rainproof capability.

5) DC24V(Safe voltage)

6) Installed the chassis, adjust the position automatically after power on, and adjust the angle of rising pole and falling pole at will.

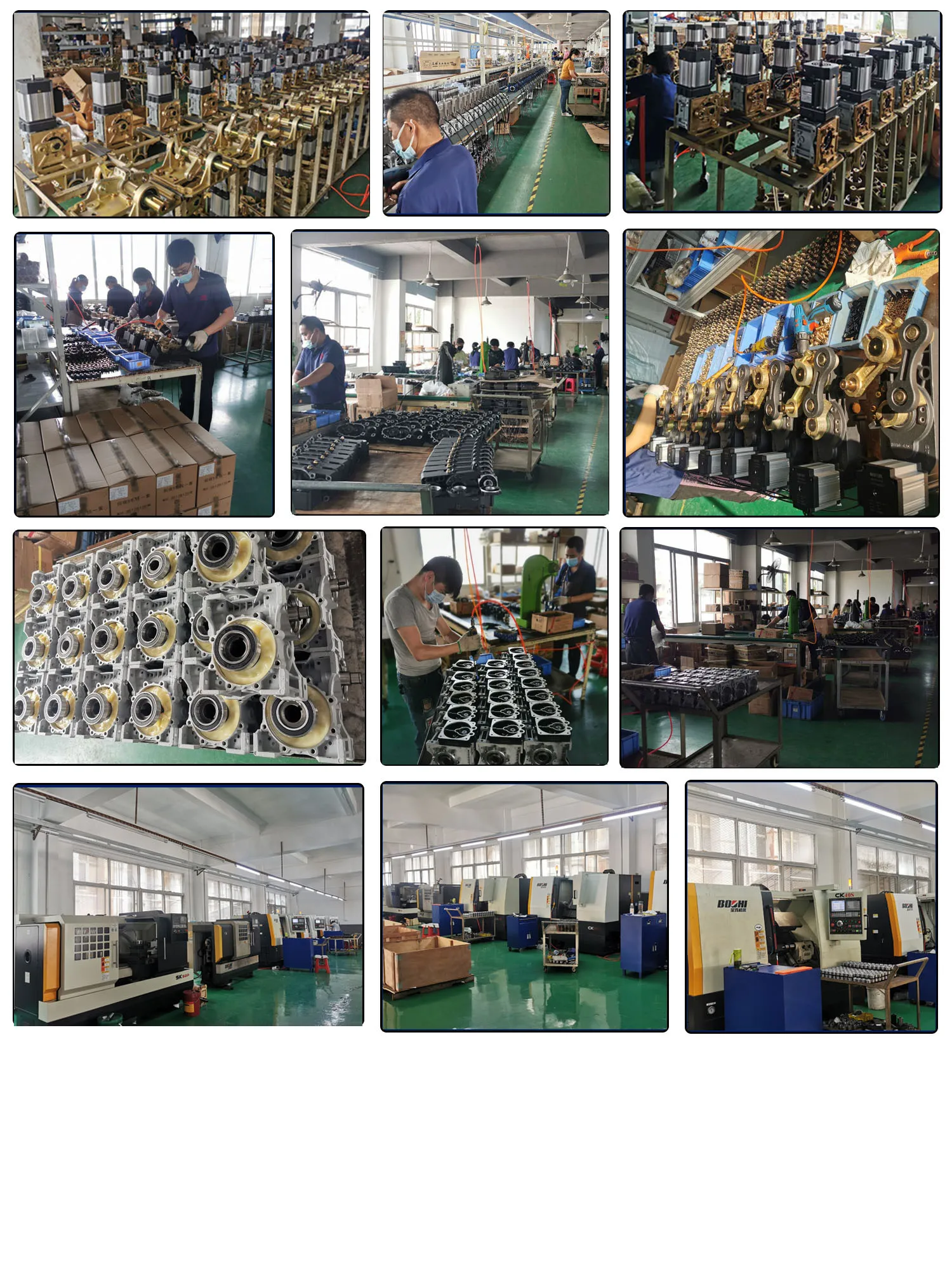

Factory View

Assembly Equipment

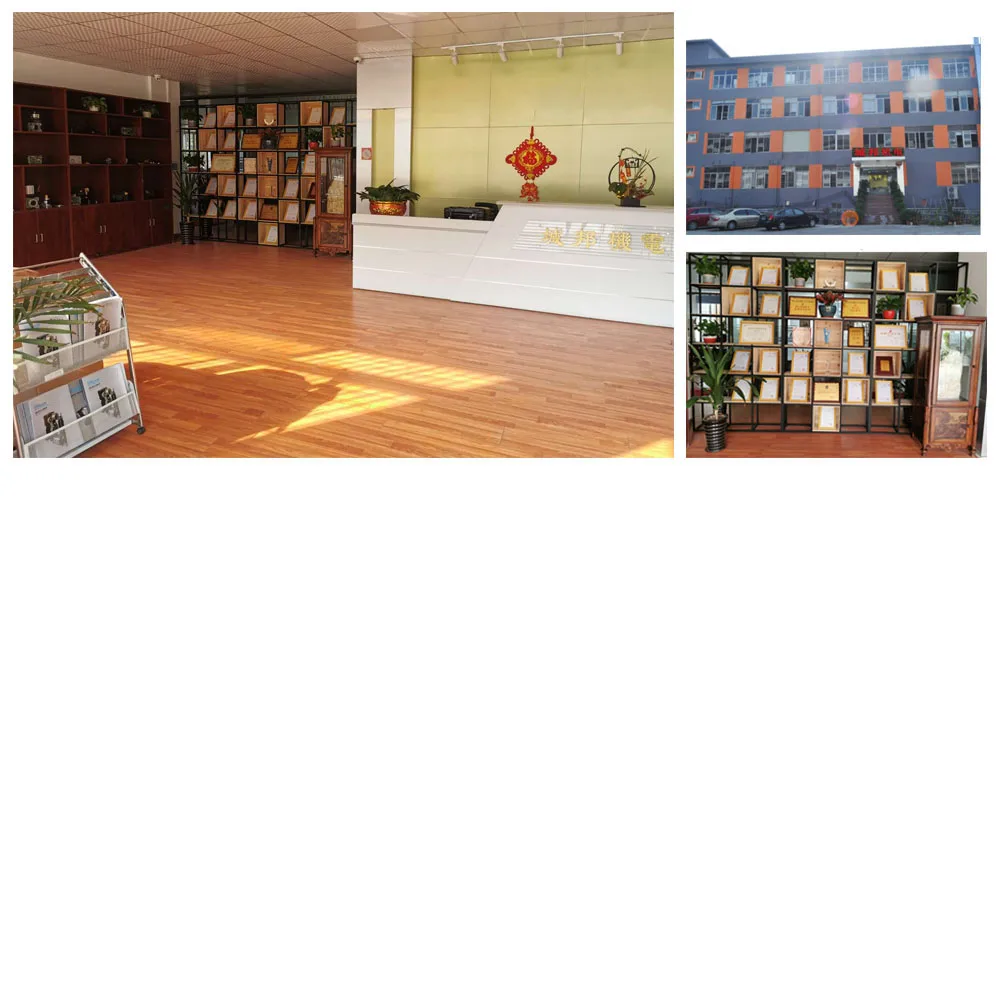

Visit Factory

Exhibition

Enterprise Qualification
